ACM SIGGRAPH 2026 (Trans. on Graphics-track)

HoloPathTracer: Fast and Accurate Wave Path Tracing for Holography

Wenbin Zhou1,* Xiangyu Meng1,* Jiankai Xing1,2 Xin Liu1 Suyeon Choi3,4 Yifan Peng1
1The University of Hong Kong 2Tsinghua University 3Stanford University 4Seoul National University

* Equal contribution

Paper Supplement arXiv ACM Code (Coming Soon)
HoloPathTracer-Full focal sweep reconstruction.
Natural Defocus
HoloPathTracer-Full clockwise view-dependent reconstruction.
View-dependent
Near Far

HoloPathTracer creates holograms from path tracing scenes with physically accurate visual cues encoded, including (curved-surfaces) reflection and refraction, glossy materials, global illumination, natural defocus, and continuous view-dependent effects.

Abstract

Holography offers unique advantages for delivering perceptual realism while preserving compact form factors in VR/AR. Its perceptual quality, however, hinges on encoding rich wavefronts of photorealistic scenes into interference patterns and then incoherently multiplexing the resulting wave fields for perception.

We present a physically accurate yet computationally efficient wave optics rendering framework leveraging path tracing to encode full 3D visual cues into phase holograms. Our Monte Carlo method solves the rendering equation and the Rayleigh-Sommerfeld integral simultaneously, generates multiple time-multiplexed random holograms with minimal additional cost through path reuse, and accelerates convergence with an ambient radiance cache.

Extensive simulations and experimental validations on a spatial light modulator-based display prototype demonstrate faithful holographic reconstructions of natural 3D cues and complex materials, including realistic defocus blur, view-dependent effects, highlights, and reflections.

Motivation & Overview

Motivation

Method Overview

Wave Path Tracing Pipeline

Step 1 · Ray Sampling

Rayholo are sampled from each pixel on the SLM (recording plane) in hologram space with a random initial direction.

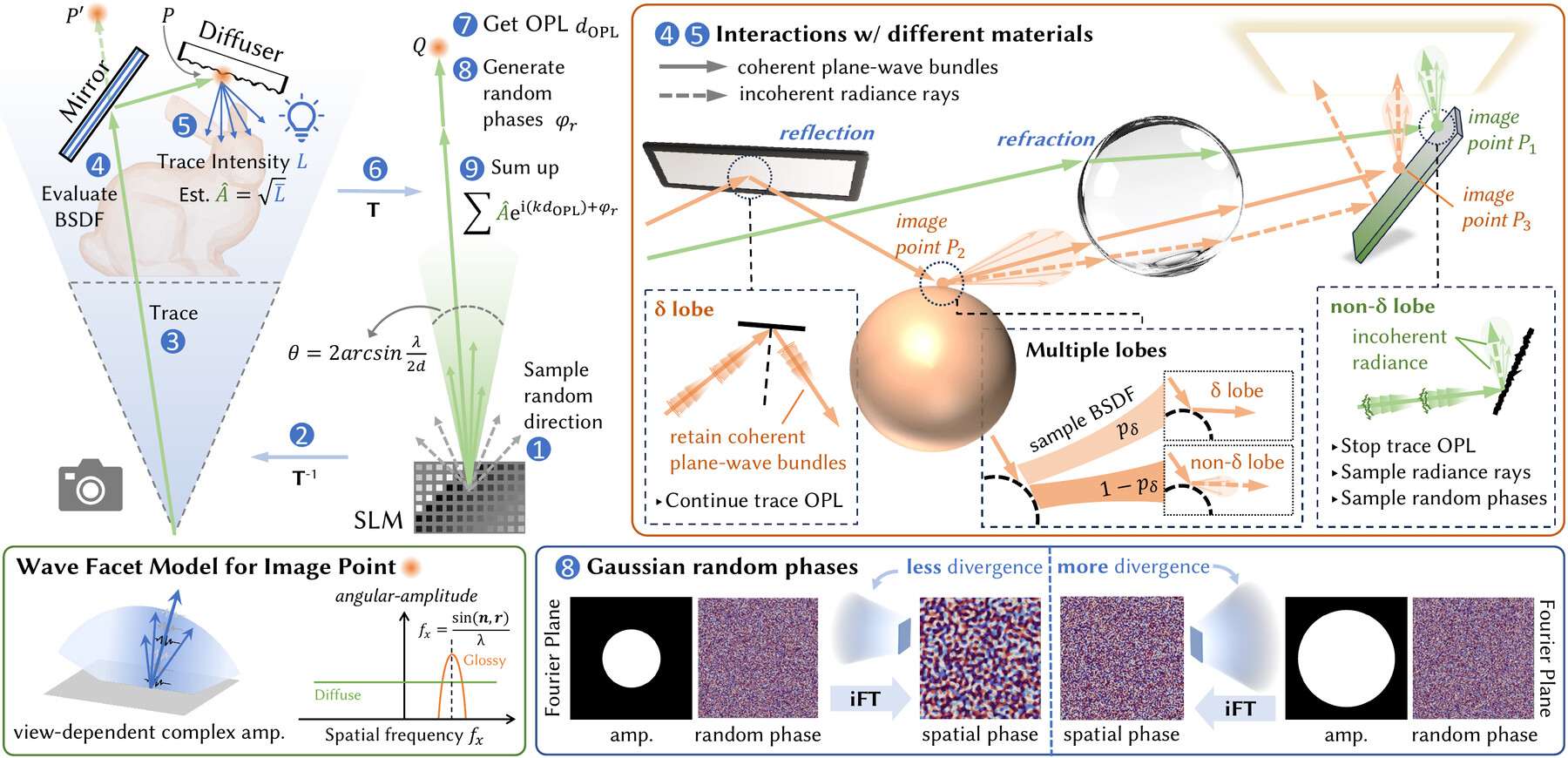

Nine-stage HoloPathTracer processing pipeline.

Interactions with different materials

Unlike image-based CGH methods, HoloPathTracer traces complete light transport paths from the SLM back to the light source, jointly accounting for the rendering equation and the Rayleigh–Sommerfeld integral. We decompose wave propagation using the angular spectrum method into coherent plane-wave bundles traveling in different directions. Since each bundle has a finite divergence angle, it can be propagated through ray tracing.

When a plane-wave bundle encounters a delta scattering event, we continue tracing it along the outgoing direction while accumulating the optical path length. For non-delta scattering, however, microscopic surface variations introduce random optical path fluctuations, so the subsequent phase no longer needs to be tracked deterministically. We instead sample a random phase to approximate the resulting incoherent superposition, which is statistically equivalent to intensity addition in expectation.

Intuitively, smooth surfaces preserve imaging capability and thus require accurate tracking of subsequent scene geometry. Rough surfaces largely destroy such imaging capability, so only the received intensity matters, which can be estimated by ordinary radiometric ray tracing.

Wave Facets

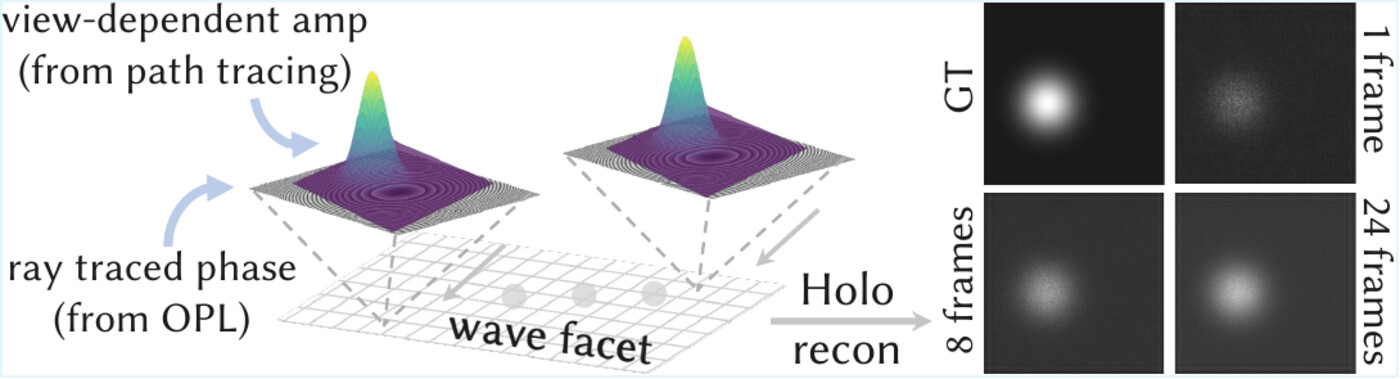

Wave facets encode view-dependent amplitudes from path tracing and phases from ray-traced OPL. With initial random phase sampling, variable-frame multiplexing progressively approximates the ground-truth angular amplitude determined by the material BSDF.

Angular amplitude on wave facets.

Random Phase Sampling

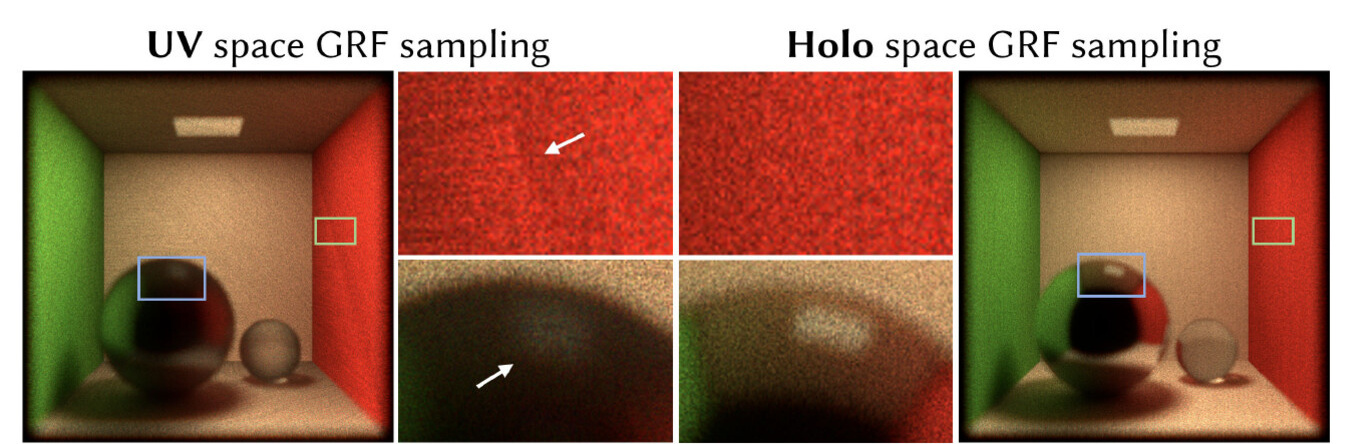

Band-limited Gaussian random fields are precomputed on the hologram space. This keeps sampling density and effective phase bandwidth tied to the SLM recording plane, avoiding distortions caused by changes in facet normals or UV scaling.

Gaussian random field sampling in UV and hologram spaces.

Efficiency

We also propose a faster variant that combines ambient-light caching with a two-stage wave-recording-plane propagation scheme. Since only the random phase changes across time-multiplexed frames, HoloPathTracer can reuse the same ray paths, geometry, amplitudes, and OPL terms, making it well suited to emerging high-refresh-rate SLMs for efficient time multiplexing and more natural defocus.

Runtime Comparison

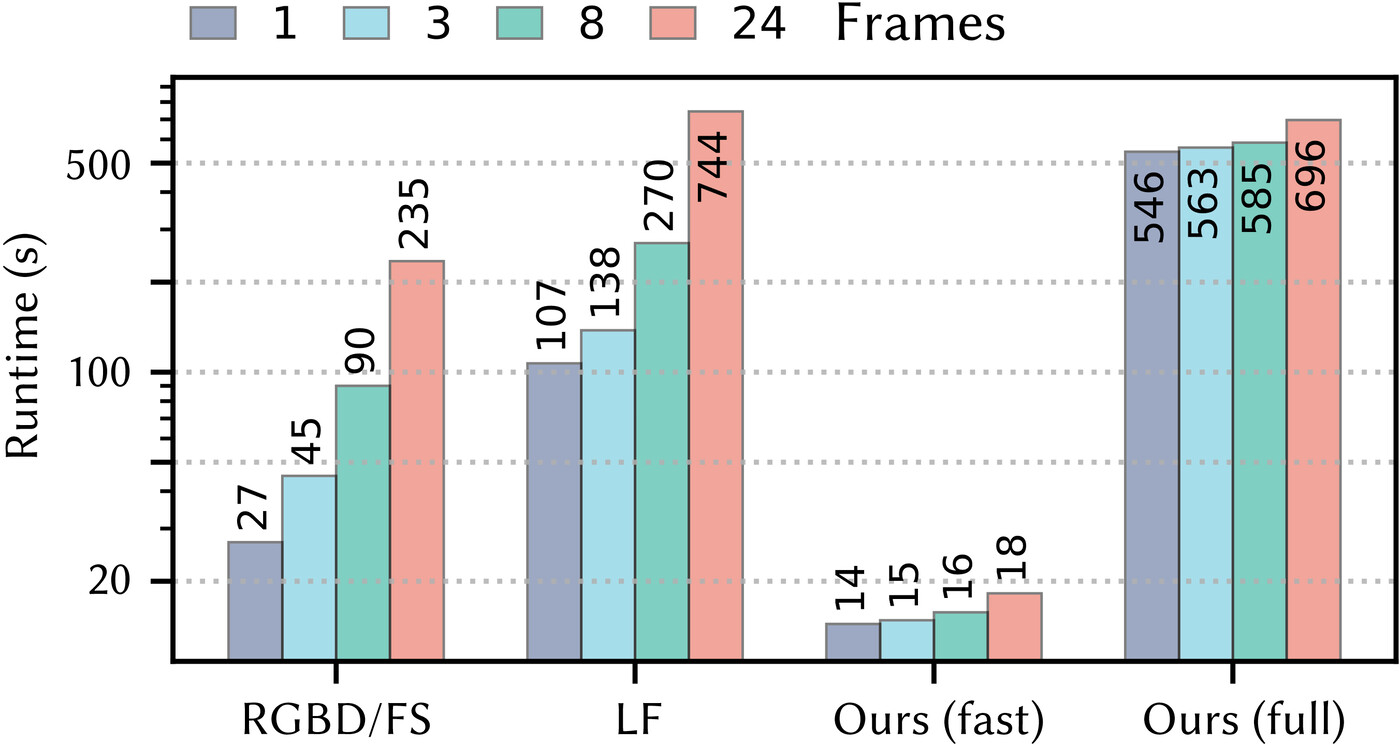

Runtime ablation on CGH frameworks.
Runtime ablation on representative CGH frameworks. Colors indicate varying-frame-multiplexing: 1, 3, 8, 24 frames. The proposed methods generate multiple frames with only marginal computational overhead.

Convergence Speed

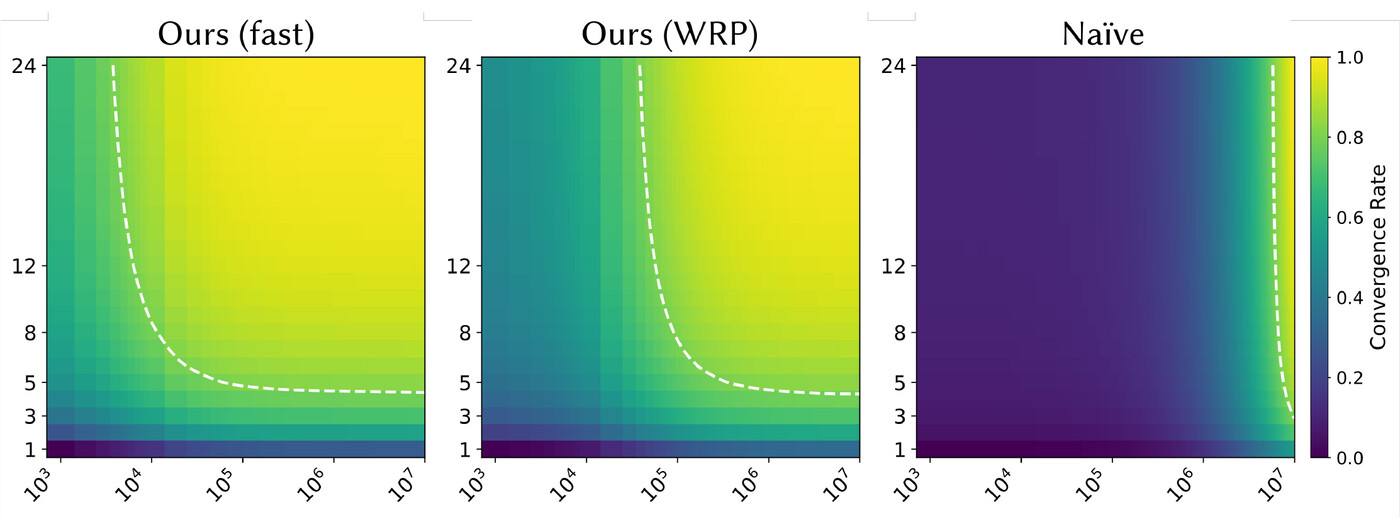

Convergence behavior of wave field rendering schemes.
Convergence behavior of wave field rendering schemes. Convergence comparison between direct hologram-plane rendering (right), the proposed two-stage wave-recording-plane to SLM propagation (middle), and the texture-baked fast variant (left). x-axis: samples per pixel (SPP); y-axis: number of time-multiplexed frames. Convergence rate is measured by the ratio of reconstruction PSNR against that of 107 spp. Note, white dashed lines indicate the 80% convergence.

Interactive Comparisons

Scene
Left interactive holographic reconstruction.
HoloPathTracer-Full (Ours)
Auto Play
Views X 0.00° Y 0.00°
+0.5°
-0.5°
+0.5°
-0.5°
Focus

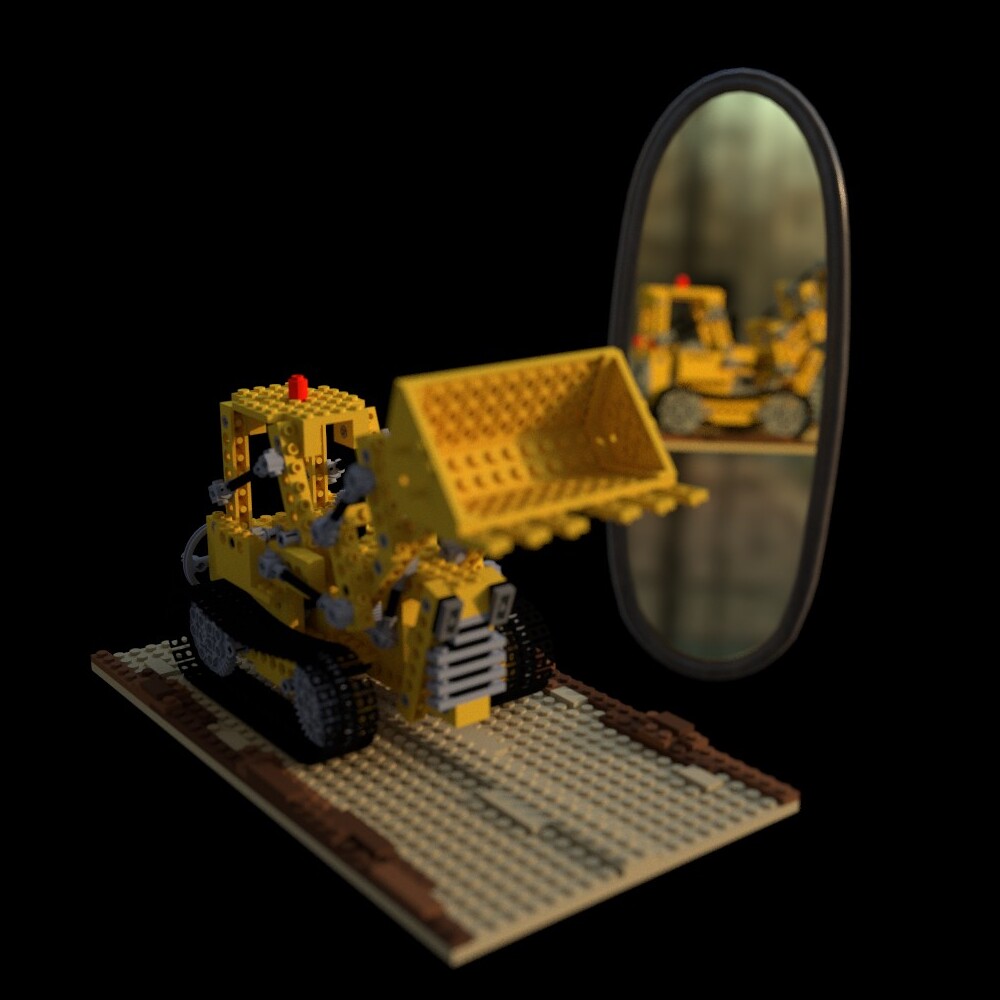

Right interactive holographic reconstruction.
Ground Truth (Mitsuba renderer)

Simulation Results

HoloPathTracer-Full most closely follows the Mitsuba reference across the tested scenes, preserving smooth refocus transitions, view-dependent effects, and imagery formed by lenses and mirrors. The texture-baked fast variant keeps the same depth and view cues with minor color or detail drift, trading a small visual loss for substantially faster multi-frame hologram generation.

Image-based methods (RGBD, Focalstack, Lightfield) overfit the hologram to pre-defined depths/views/pupil sizes, resulting in significant downgrades in unsupervised conditions, such as novel views, intermediate focal planes and different pupil sizes.

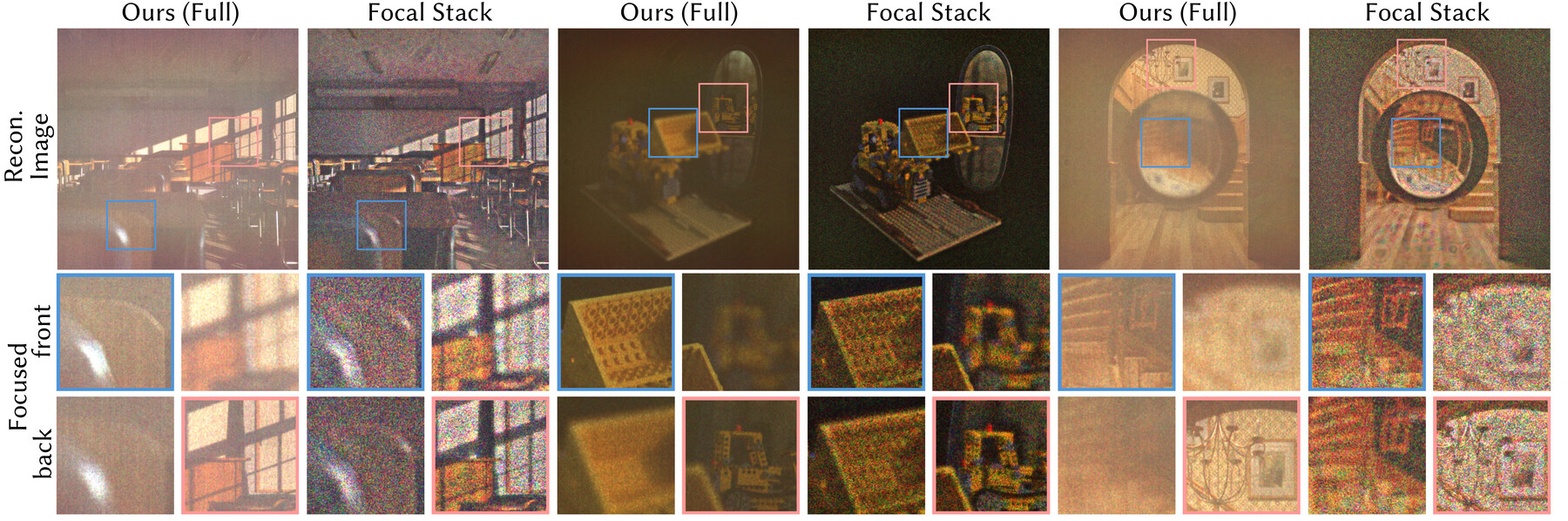

Experimentally Captured Focal Stacks and Multi Views

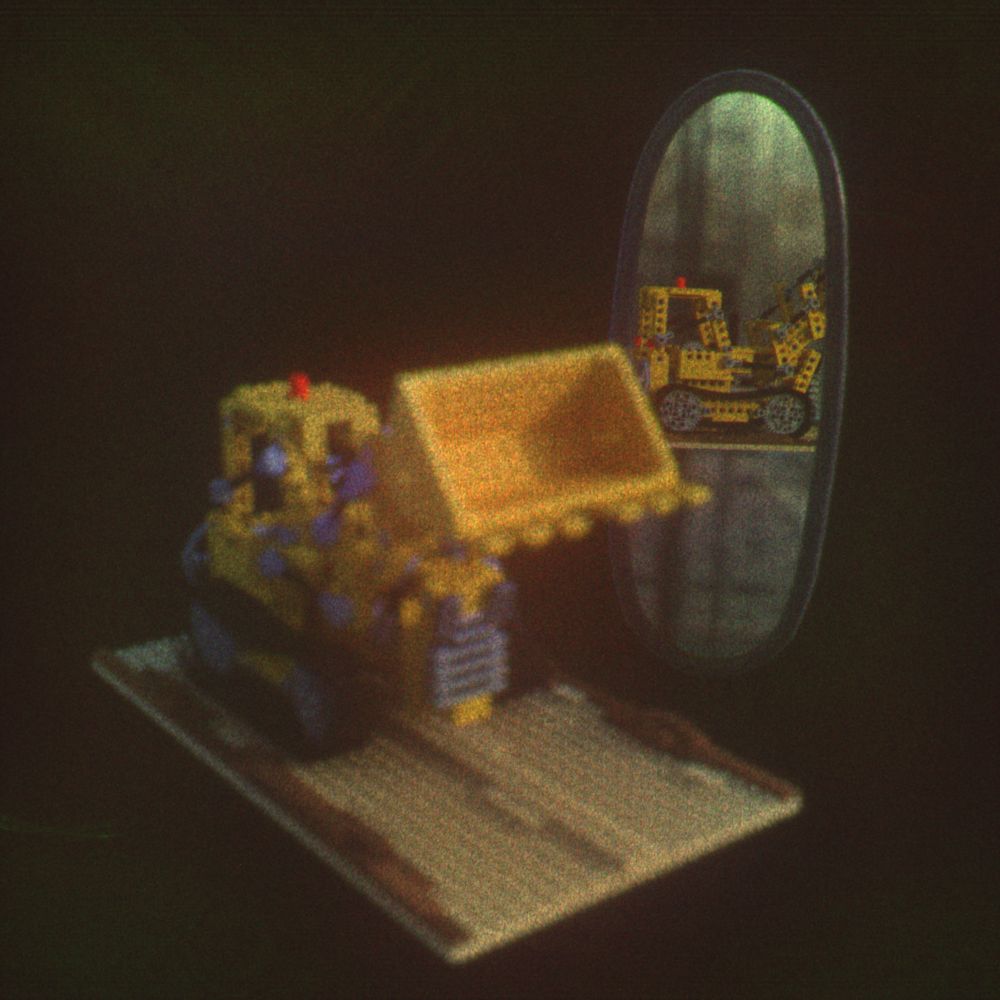

Experimentally captured HoloPathTracer focal stack of the Lego and Mirror scene.
Natural Defocus
Near Far

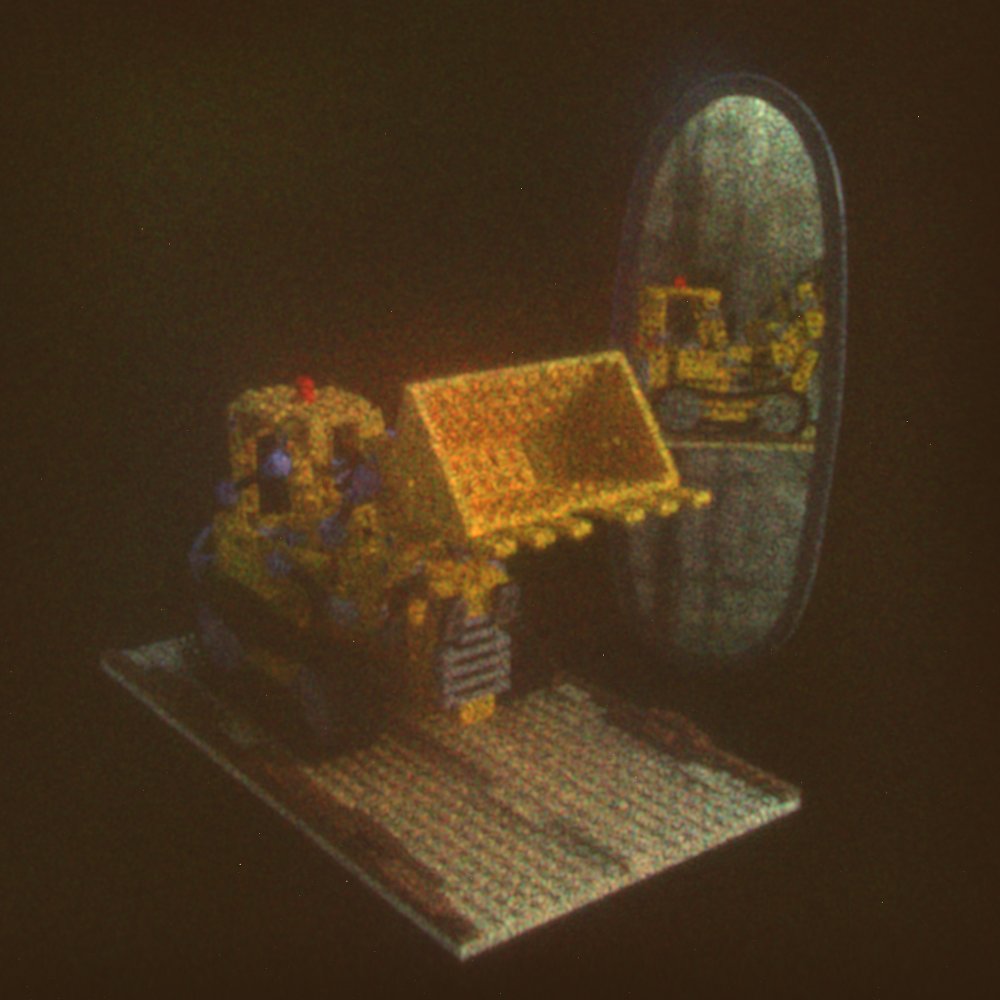

Experimentally captured HoloPathTracer view-dependent reconstruction of the Lego and Mirror scene.
View-dependent

Experimentally captured focal stacks and multi views of holograms from HoloPathTracer, Natural Defocus are captured through refocusing the camera on different depths, while View-dependent results are captured by shifting a filter on fourier plane to simulate the pupil movement.
